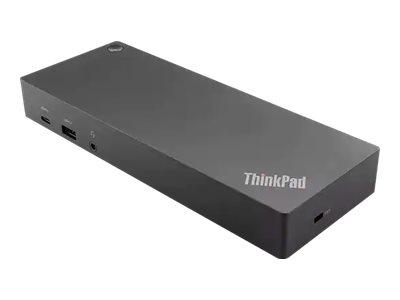

ThinkPad Hybrid USB-C + USB-A Dock
Part# 40AF0135UK-02
EAN:0191999788311
Lenovo ThinkPad Hybrid USB-C with USB-A Dock - Docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE - 135 Watt - United Kingdom
Native product specifications. The product description originates from Cnet. Foxway Distribution accepts no responsibility for error or misinformation in product descriptions from Cnet.
Product specifications
| Product Description | Lenovo ThinkPad Hybrid USB-C with USB-A Dock - docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE |
| Manufacturer Warranty | 3-year warranty |
| Dimensions (WxDxH) | 21 cm x 8 cm x 3 cm |
| Weight | 475 g |
| Networking | Gigabit Ethernet |
| Power | Power adapter 135 Watt Power Provided |
| Product Type | Docking station |
| Localisation | English / United Kingdom |
| Designed For | Miix 520-12IKB; Tablet 10; ThinkPad E480; E580; L380; L380 Yoga; L470; L480; L580; P51s; P52s; T25; T470; T470p; T470s; T480; T480s; T570; T580; X1 Carbon; X1 Tablet; X1 Yoga; X270; X280; ThinkPad Yoga 370 |
| Docking Interface | USB-C |
| Video Interfaces | 2 x HDMI, 2 x DP |
General features
| Width | 21 cm |
| Depth | 8 cm |
| Height | 3 cm |
| Weight | 475 g |
| Product Type | Docking station |
| Localisation | English / United Kingdom |
Porte
| Interfaces | 2 x USB 3.1 Gen 2 ¦ USB 3.1 Gen 2 with Always-on charging ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 3.1 Gen 2 ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole |
Warranty
| Service & Support | Limited warranty - 3 years |
Network
| Data Link Protocol | Gigabit Ethernet |
Compliance
| Features | Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through |
| Compliant Standards | TUV, VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, Ukraine EMC DoC, LoA |
| Cables Included | 1 x USB-C to USB-C / USB 3.0 type A cable - external |
Power
| Power Device | Power adapter |
| Power Provided | 135 Watt |
HDD / SSD tolerance
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
Shipping dimensions
| Shipping Width | 27 cm |
| Shipping Depth | 16.5 cm |
| Shipping Height | 8.8 cm |
| Shipping Weight | 1.35 kg |
Specifications
The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks.
- One dock for all notebooks
Enhances the performance of Lenovo USB-C notebooks and tablets through USB-C connection, as well as previous generation and market notebooks through the USB-C to USB-A adaptor. - Rich performance
Provides up to dual UHD 4K display with DP and HDMI ports. Up to 10 Gbps data transfer speed on three USB3.1 gen2 ports, and rapid charging for ThinkPad family notebooks. - Enterprise manageability & simplification
Host of manageability features like PXE boot, Wake-On-Lan from sleep mode, and MAC address pass-through. Ideal for enterprise customers.
